Booth's Algorithm,Unsigned binary multiplication,Two's complement Multiplication Booth's Algorithm

The purpose of booth's algorithm is to allow the multiplication of two signed binary numbers in two's complement form.
                         Booth's algorithm facilitates the process of multiplying signed numbers.

                      Flow chart of unsigned binary multiplication



Example of unsigned binary multiplication

1010*1100

C	A	Q	M	comment
0	0000	1010	1100	Initial value
0	0000	0101	1100	Since Q0=0 Shift C,A,Q by 1bit
0	1100	0101	1100	Since Q0=1 C,A         A+M
0	0110	0010	1100	Shift C,A,Q by 1 bit
0	0011	0001	1100	Since Q0=0 Shift C,A,Q by 1 bit
0	1111	0001	1100	Since Q0=1 C,A        A+M
0	0111	1000	1100	Shift C,A,Q by 1 bit

Answer(AQ)=01111000

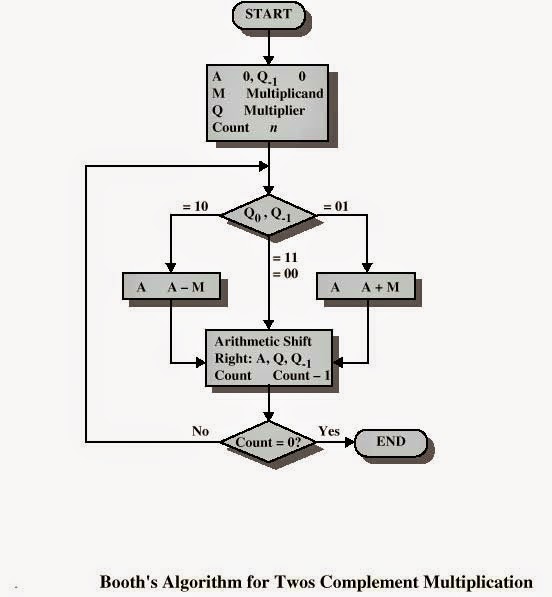

             Flow chart of Booth's Algorithm fot two's complement Multiplication

Example of  Booth's Algorithm (7*3):-

A	Q	Q-1	M	comment
0000	0011	0	0111	Initial value
1001	0011	0	0111	Q0,Q-1=10 A<- A-M
1100	1001	1	0111	Shift right A,Q,Q-1
1110	0100	1	0111	Q0,Q-1=11 Shift right A,Q,Q-1
0101	0100	1	0111	Q0,Q-1=01 A<- A+M
0010	1010	0	0111	Shift right A,Q,Q-1
0001	0101	0	0111	Q0,Q-1=00 Shift right A,Q,Q-1

Answer(AQ)=00010101
